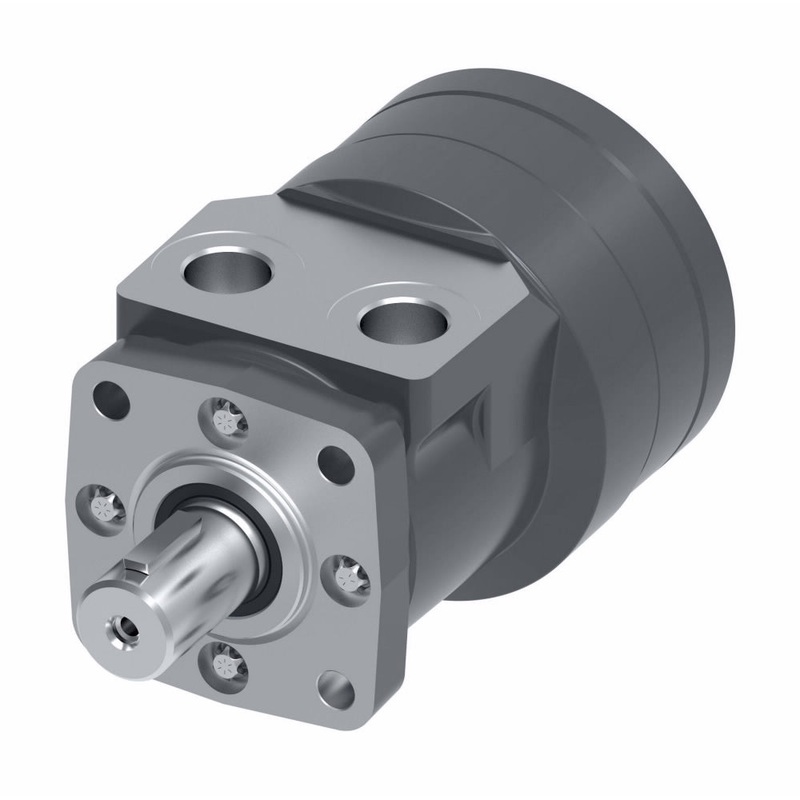

Eaton Char-Lynn Hydraulic Motor

Char-Lynn steering controls, general purpose motors, including spool valves motors, disc valves motors, and other high-performance motors have been Eaton products since 1970. Known for their quality and performance, these highly cost-effective, industry leading products are widely used by original equipment manufacturers in a broad range of industrial and consumer vehicles and equipment.

Eaton Code – M02119AC16AG0200010000000ABAAF
Displacement CC/Rev – 194.8 cm3/r [11.89 in3/r]
Mounting Type – Standard, 2 Bolt; 82.6 [3.25] Pilot DIA. 13.59 [.535] DIA. Holes On 106.4 [4.19] DIA. Bolt Circle. SAE A
Output Shaft – 32mm [1.260] DIA. Straight With M8 X 1.25-6H Thread In End, 9.982 [.3930]W X 7.995 [.3132]H X 45.00 [1.772]L Key
Ports – G 1/2″ BSP Straight THD – Staggered Ports

Geroler Standard
Flow Rate – 75L/Min
Maximum Speed – 385 revolutions per minute
Torque – 540 newton metre
Two Speed Ratio – None

Geroler/Geroter Motors

Char-Lynn low-speed, high-torque hydraulic motors deliver from 200 to 45,000 in-lbs. of torque at operating speeds up to 2,000 rpm and offer options including integrated brakes, 2-speed operation and speed sensors. They exceed the demanding requirements of the mobile vehicle and industrial machinery markets and help you build a reputation for dependability.
