Aventics 1 827 231 010
Bosch Pressure Gauge

Aventics is an international producer of pneumatic components & systems, with facilities located in the United States, Europe, and China. The pneumatics division of Aventics fabricates pneumatic valves, cylinders, directional valves, pressure valves, electro-pneumatic valves, solenoid valves, fittings, flow controls, actuators, and marine-propulsion regulators.

Technical Information
Dial: 2
0-200 PSI
Back Entry
Compressed Air Connection: G 1/8
Nominal Diameter: 50mm
Face Diameter: 40mm
Scale Value: 0.5
Range of Application Min.: 0 bar
Range of Application Max.: 12 bar
Display Range Min.: 0 bar
Display Range Max. : 16 bar
Working Pressure Min.:0 bar
Working Pressure Max: 16 bar
Min. Ambient Temperature: -40 C
Max. Ambient Temperature; 60 C
Medium: Compressed air

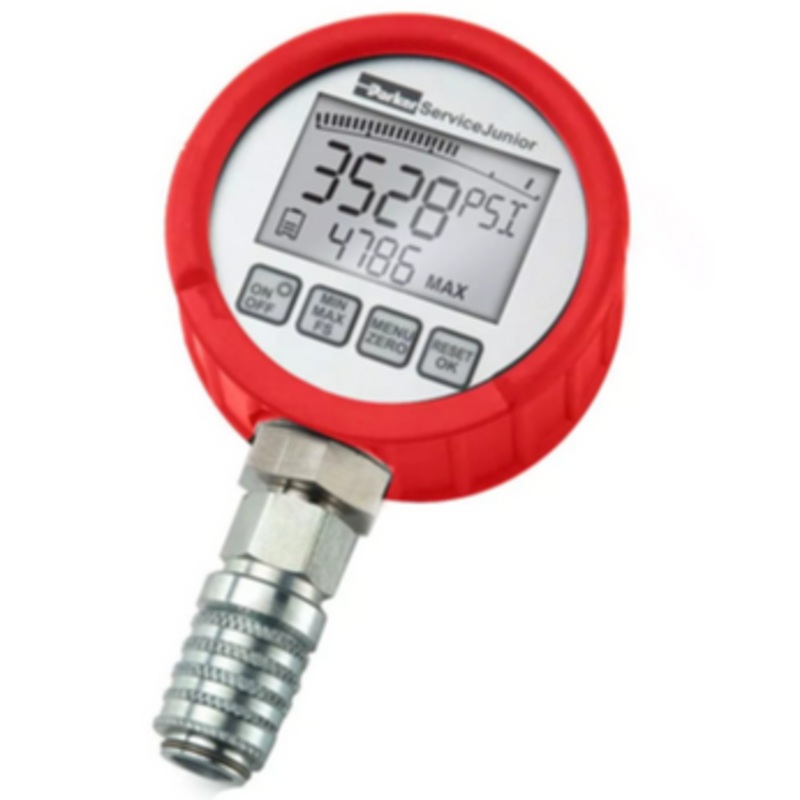

Please note that the product may not be exact to the image shown.
