20mm
Brake Cylinder

Hydraulic Brake Actuators
Large range of hydraulic brake actuators in pistod rod sizes 20, 25, 30, 35, with various mounting brackets & return spring options.

• Cylinders only

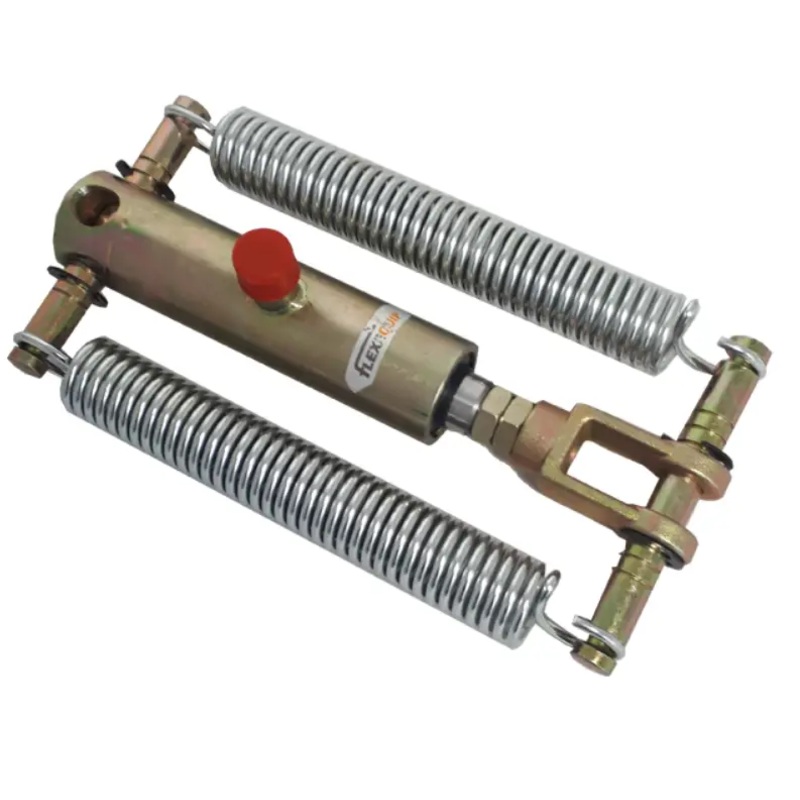

• C1 Type Complete with 2 Mounting pins & 2 Return springs
• C2 Type Square beam Mounting bracket with 1 Return springs

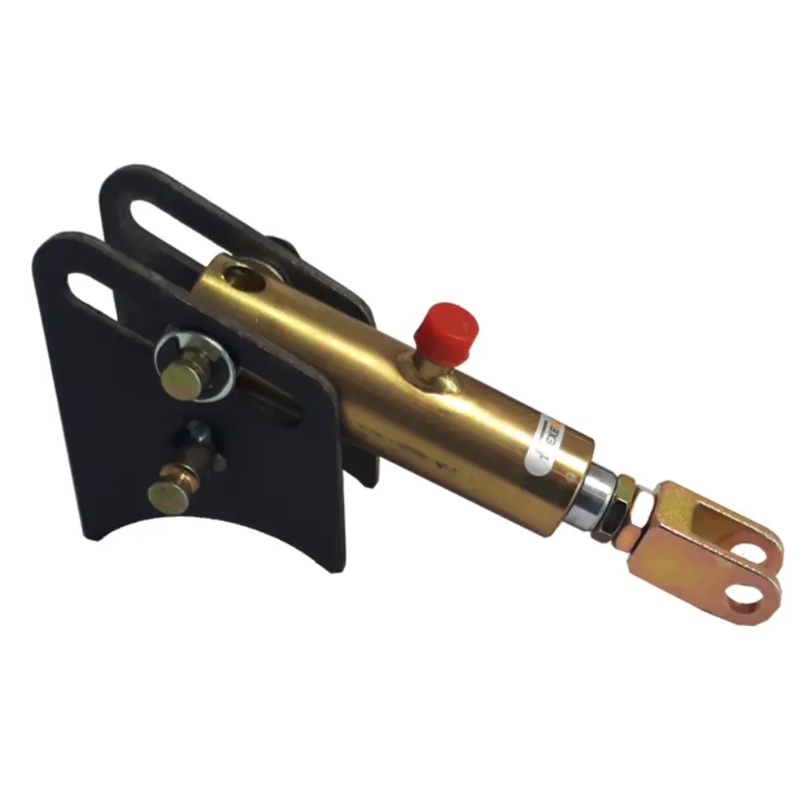

• C3 Type Round beam mounting bracket & 1 Return spring

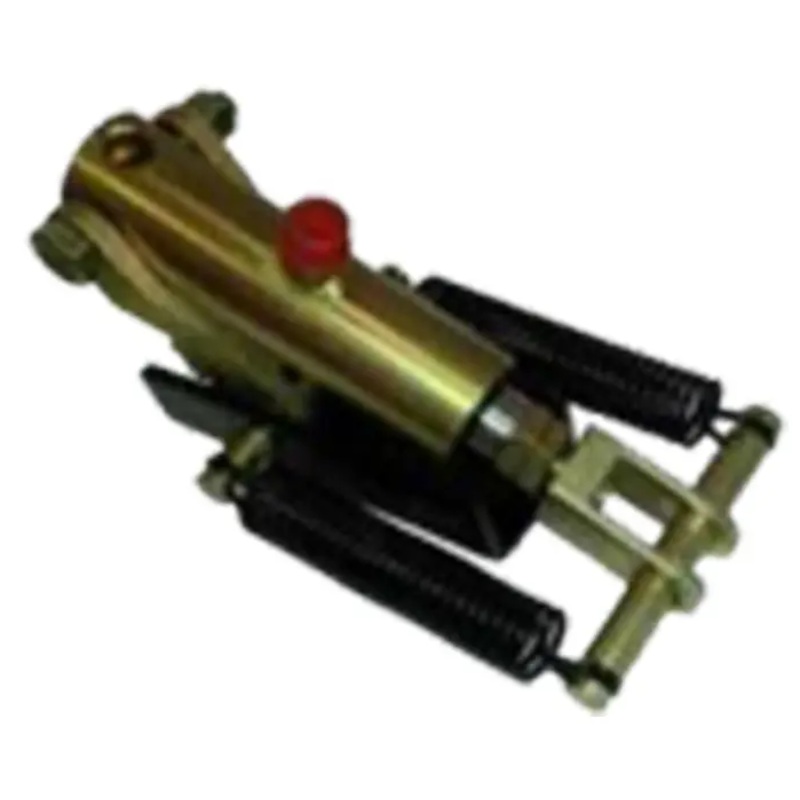

• C4 Type Square beam Mounting bracket & 2 Return springs
• C5 Type Air chamber convertor bracket & 2 Return springs
• C6 Type Complete with wrap around external Return springs & 2 pins
• C7 Type Complete with 2 pins & internal Return springs

20mm OD brake cylinder with 75mm stroke and 3/8″ BSP male connection port.

Technical Specification

Size:

20mm

Cylinder type:

Displacement

Stroke:

75mm

Closed centres:

211~ 217mm

Thrust force @ 100 bar:

3142 N

Maximum pressure:

210 Bar

Temperature range:

-40C / +80C

Connection port:

G 3/8″ male

Cylinder End mounting:

14.5mm hole

Clevis end mounting:

14mm pin

Unit weight:

1.6 Kg
